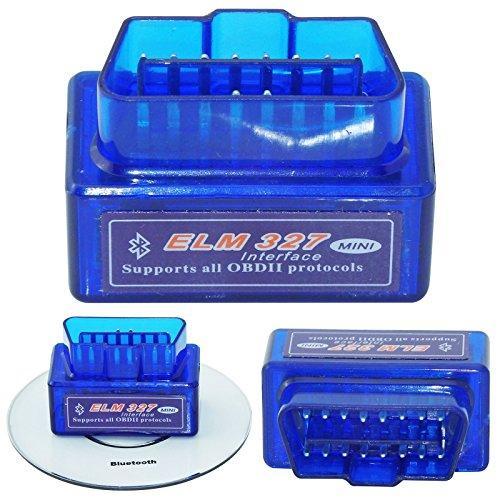

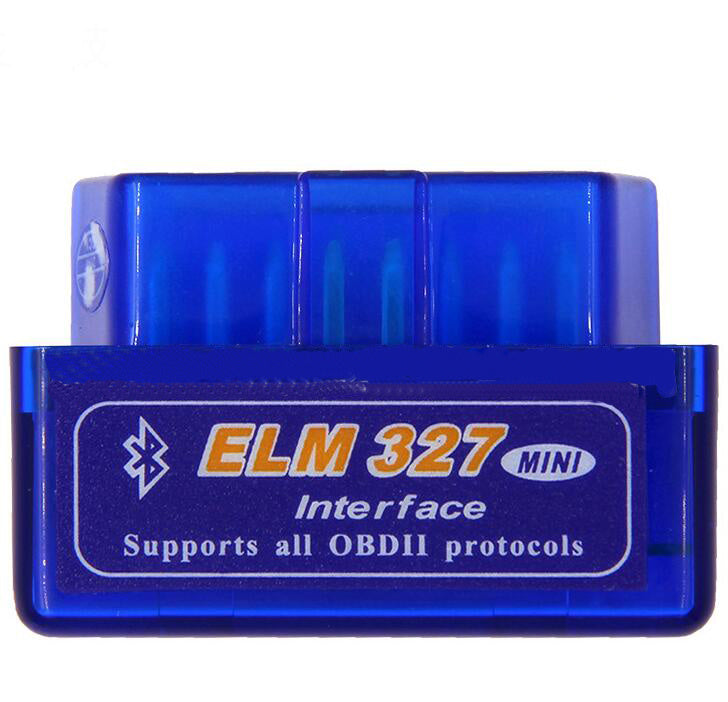

ELM 327 Car Bluetooth

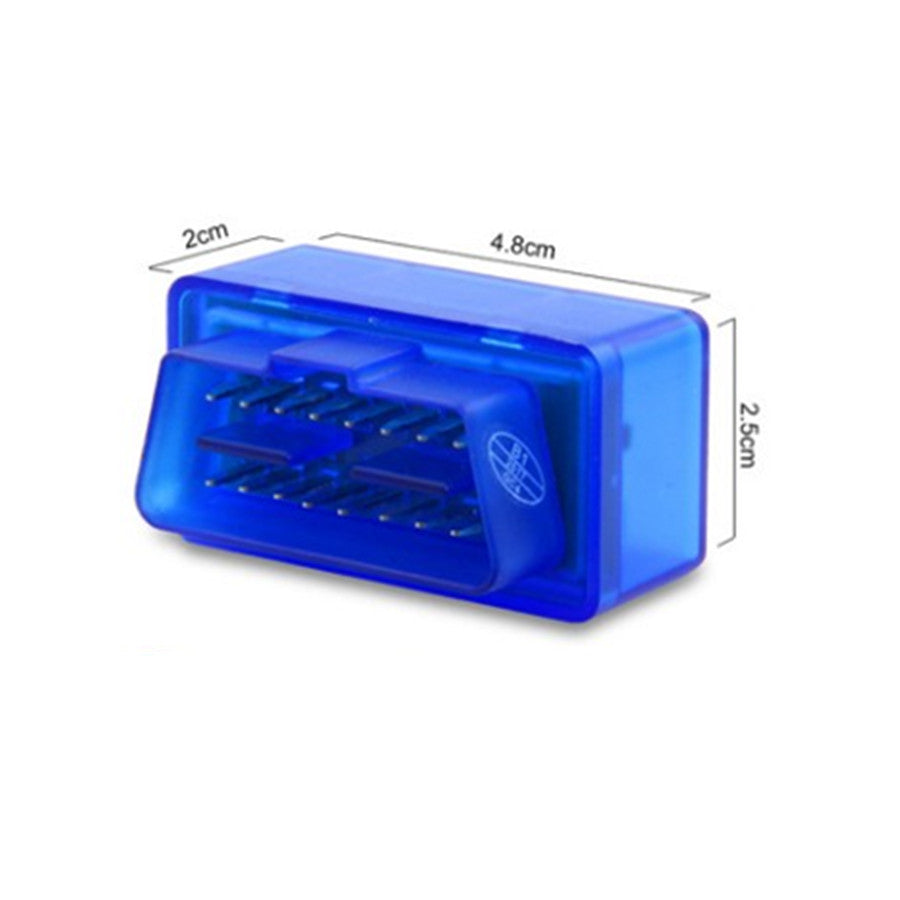

size: 1.9*1.2*1.0 inch

Latest V2.1 Super Mini ELM327 Bluetooth OBD2 Scanner for Multi-brands CAN-BUS Supports All OBD2 Protocol works on Android Windows Symbian, used to read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).

Latest V2.1 Super Mini ELM327 Bluetooth OBD2 Scanner for Multi-brands CAN-BUS Supports All OBD2 Protocol

Top 5 Reasons To Get S

Super MINI ELM327 Bluetooth
1. Software Version: V2.1
2. Hardware Version: V1.5
3. Works with all OBD-II compliant vehicles
4. Wireless (Bluetooth)
5. Software included for Palm, PDA, Windows PC, Windows Smartphone

Supported protocols:
1.SAE J1850 PWM (41.6Kbaud)
2.SAE J1850 VPW (10.4Kbaud)
3.ISO9141-2 (5 baud init, 10.4Kbaud)
4.ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
5.ISO14230-4 KWP (fast init, 10.4 Kbaud)
6.ISO15765-4 CAN (11bit ID, 500 Kbaud)
7.ISO15765-4 CAN (29bit ID, 500 Kbaud)
8.ISO15765-4 CAN (11bit ID, 250 Kbaud)
9.ISO15765-4 CAN (29bit ID, 250 Kbaud)

Super Mini ELM327 Bluetooth Functions:
1: Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
2: Clear trouble codes and turn off the MIL ( "Check Engine" light)
3: Display current sensor data, including:
4: Engine RPM
5: Calculated Load Value
6: Coolant Temperature
7: Fuel System Status
8: Vehicle Speed
9: Short Term Fuel Trim
10: Long Term Fuel Trim
11: Intake Manifold Pressure
12: Timing Advance
13: Intake Air Temperature
14: Air Flow Rate
15: Absolute Throttle Position
16: Oxygen sensor voltages / associated short term fuel trims
17: Fuel System status
18: Fuel Pressure
19: Many others

Package list:
1pc x Super MINI ELM327 Bluetooth V1.5
1pc x CD Drive

WIFI V1.5 ELM327 overview:
Ultra low power consumption, working current is only 66mA.

Version V1.5, supports all 9 protocols:


1) ISO9141-2 (5 baud rate initialization, 10.4Kbaud)

2) ISO14230-4 KWP (5 baud rate initialization, 10.4 baud)

3) ISO14230-4 KWP (fast initialization, 10.4 baud)

4) ISO15765-4 (11-digit number, 500 kilobaud)

5) ISO15765-4 (29bit number, 500 baud)

6) ISO15765-4 (11-digit number, 250 baud)

7) ISO15765-4 (250 baud ID, 29bit)



8) SAE J1850-PWM



9) SAE J1850-VPW

-CAN of SAE J1939 (29bit ID, 250 * baud)

-User1 can (11-bit ID, 125 * baud)

CAN * bit ID of USER2, 50 * baud (11)
