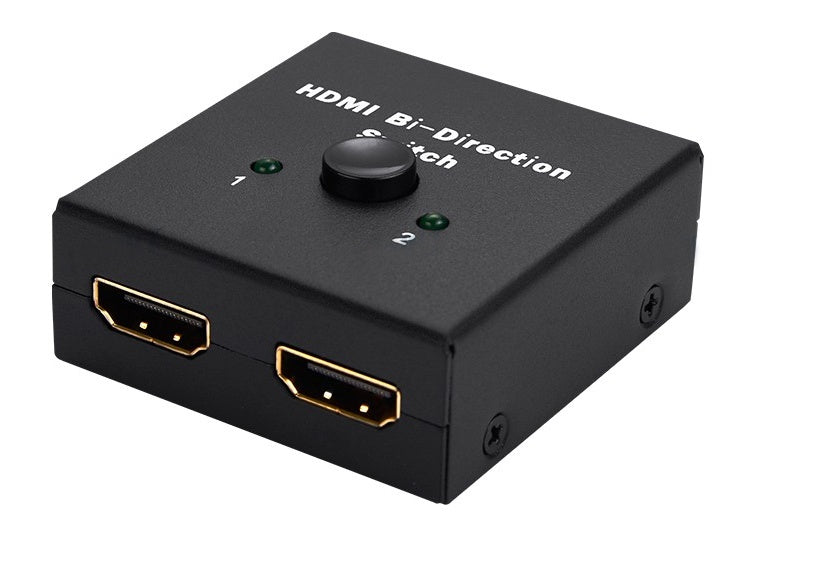

HDMI two-way two in one out switch

Installation and Safety Precautions

1.Cables must be placed well, where it would not be stepped on or pinched. Make sure HDMI cables are fully inserted into ports.

2.To provide sufficient ventilation during use, make sure there is at least 1 inch of clearance on each side of the

device (except the side where it rests on a flat surface).

3.Do not set up this product adjacent to a water source or an environment that has excessive moisture.
4.Place this product on a flat surface and keep it out of reach of children.

Package Contents

1.HDMI Bi-Direction Switch x1

2.User Manual x1

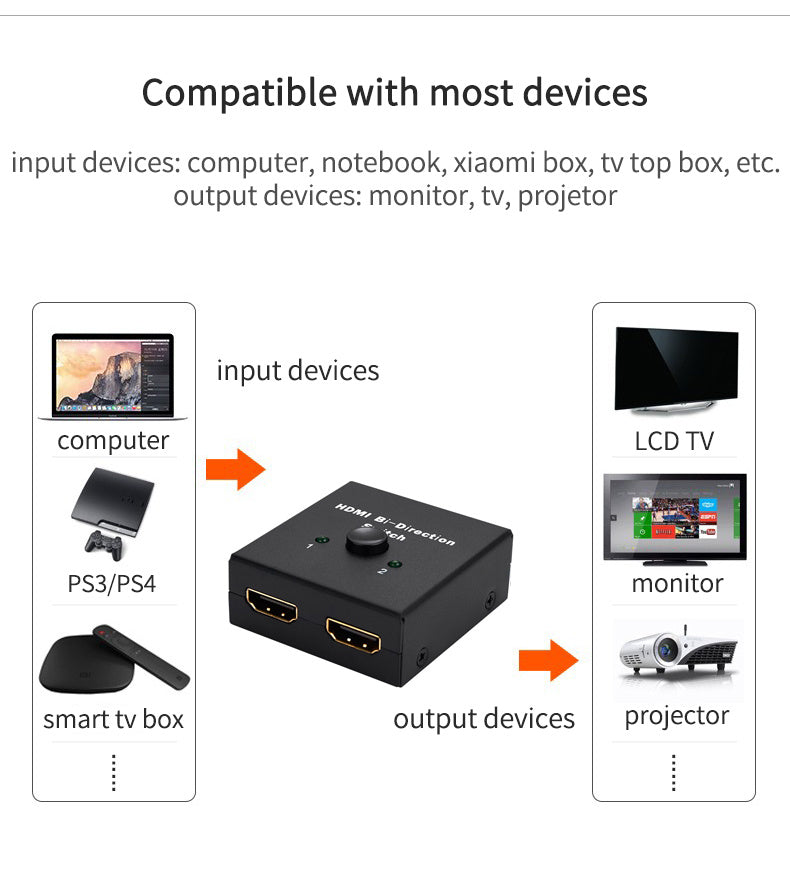

Schematic Diagram of Connection

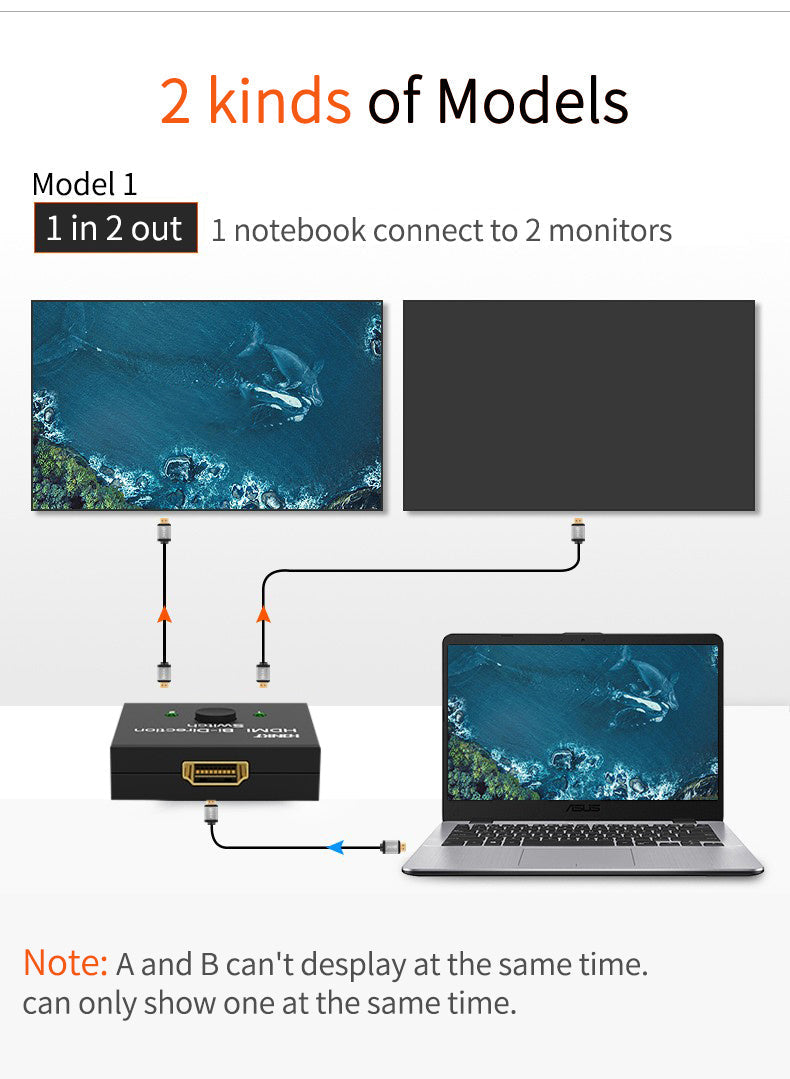

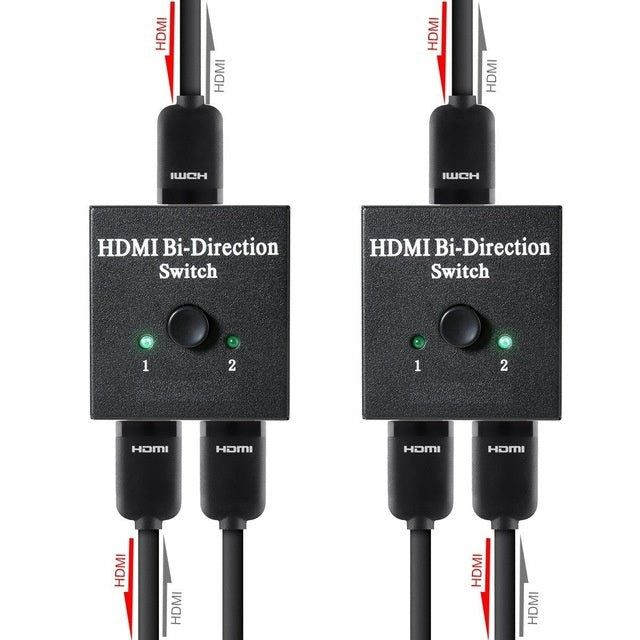

Example of 1 Input to 2 Outputs

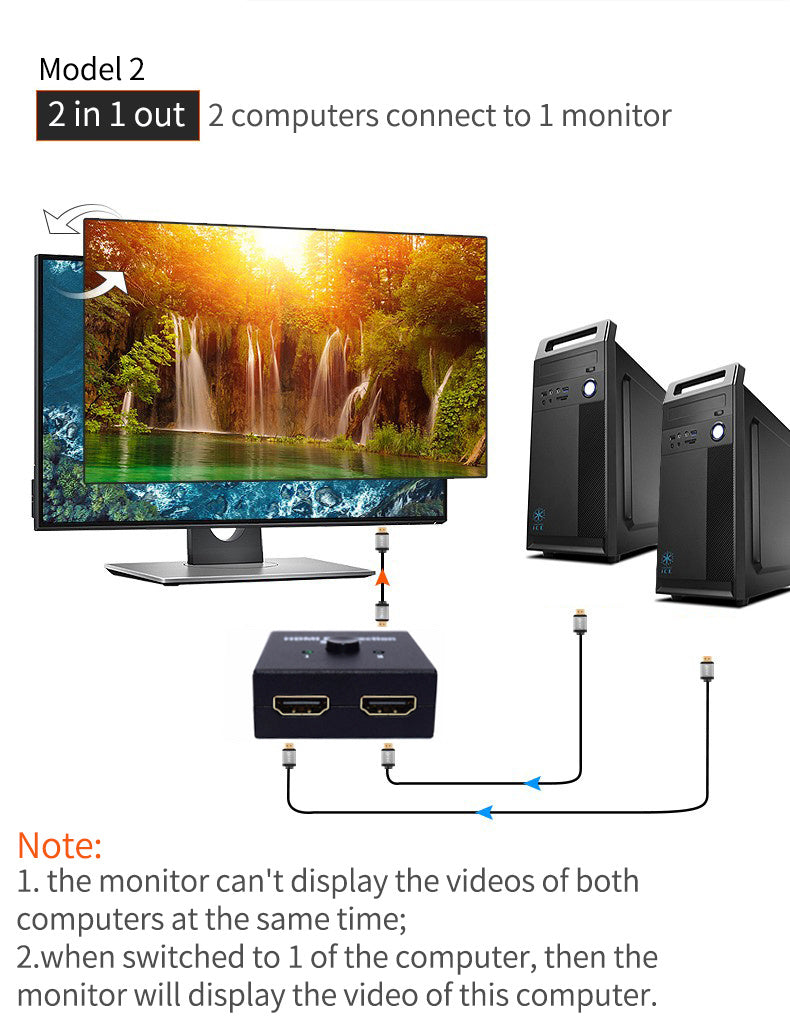

Example of 2 Inputs to 1 Outpu

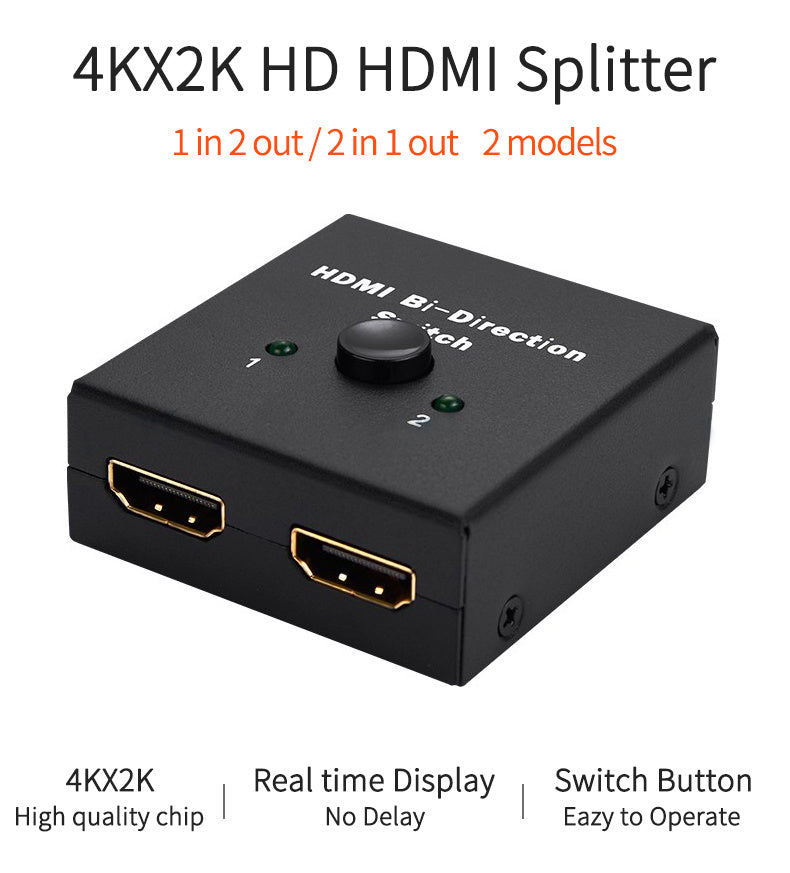

Features & Specification

*2 HDMI-Host (DVD Player or PS3) to 1 HDMI Monitor or TV

*1 HDMI-Host (DVD Player or PS3) to 2 HDMI Monitor or TV

*Power free

*MAX operation current:15ma

*Full compliance with the HDMI Specification V1.0,V1.1,V1.2,V1.3

*Main control: Manual electron select

*With 2 LED & display working port

*3 HDMI A/F connectors

*LED :  2 (Blue),Display working port

*Easy install & operation

*Support HDMI Plug & Play

*Support HDMI 1920 * 1080P * 60(MAX)

*Support MAX cable length:5m (total)

*Plug & Play

*Dimensions:42*50*25 mm(L,W, H)

* Weight:35g Housing: Plastic
